When most people look at a wind turbine, they see giant spinning blades and maybe a futuristic skyline. But under the hood? It’s a whole different world of wires, cables, and very specific engineering decisions. Not all cables do the same job, and choosing the right type matters more than you might think. So, let’s walk through the many cables hiding inside your friendly neighborhood wind turbine.

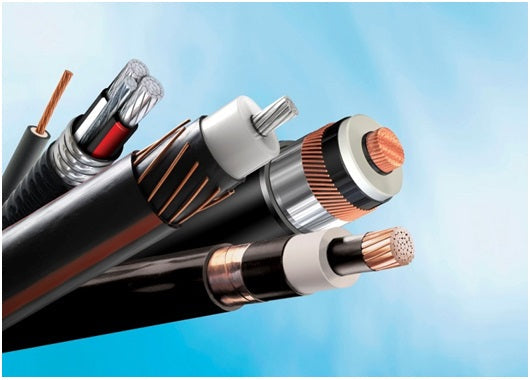

Power Cables: The Heavy Lifters
First up, the obvious ones. Wind turbines generate electricity. That electricity has to get from the generator to wherever it’s going—usually a energy storage system like a battery, then the grid. And that's where power cables do their thing.
- Low-Voltage Cables (LV): Inside the nacelle (the housing up top), you’ll find LV cables feeding power to sensors, control panels, and small systems. They’re usually rated around 600V, super flexible, and built to squeeze into tight spaces.
- Medium-Voltage Cables (MV): These are the workhorses for most onshore turbines. Once the generator makes electricity, MV cables (typically rated 10kV to 35kV) carry it down the tower to the pad-mounted transformer. Durability matters here: these cables have to handle heat, moisture, and mechanical stress over decades.
- High-Voltage Cables (HV): For large-scale projects—especially offshore—HV cables are essential. You might see cables rated anywhere from 66kV up to 245kV depending on how far that electricity needs to travel. These are heavily shielded and armored, especially when submerged undersea.
Spotlight: XLPE Cross-Linked PE Cable
One standout product often used in these applications is the XLPE Cross-Linked PE Cable. XLPE stands for Cross-Linked Polyethylene, a type of insulation material that offers excellent thermal, mechanical, and chemical resistance. This makes it perfect for harsh environments often seen in wind turbine installations.
- Superior Thermal Stability: XLPE insulation can withstand higher operating temperatures compared to conventional PE cables, allowing safer long-term operation.
- Excellent Electrical Properties: Its insulation strength ensures reliable power transmission without significant losses.
- Durability in Harsh Environments: Whether exposed to moisture, mechanical stress, or temperature fluctuations, XLPE cables maintain performance.
With a 66ft (20m) length option, this specific XLPE cable is particularly suited for three-phase internal turbine wiring where flexibility, reliability, and safety are critical.
Control Cables: The Brains of the Operation
Wind turbines are more than just generators; they’re complex automated systems. Control cables handle all the decision-making processes.
- Pitch Control: Adjusting blade angle depending on wind speed.
- Yaw Control: Rotating the entire nacelle to face the wind.
- Brake Systems: Engaging or releasing brakes during maintenance or emergencies.
Control cables are usually shielded multi-conductor designs, engineered to resist electromagnetic interference (EMI). After all, you don’t want a lightning strike or high wind suddenly sending confusing signals to your turbine.
Communication Cables: Talking to HQ
Modern wind farms run on data. Constant streams of information flow from each turbine to a central control room.
- Fiber Optic Cables: Fiber is king for high-speed, long-distance data transfer. Operators rely on fiber to monitor performance, predict maintenance needs, and prevent costly failures.
Without this feedback loop, operators would be flying blind, especially in remote or offshore installations where physical inspections are expensive.
Flexible Loop Cables: The Unsung Heroes
Here’s something most people don’t think about: turbines rotate. A lot. As the nacelle turns to face shifting winds, a special loop of flexible cables accommodates all that twisting and untwisting.
- Torsion-Resistant Cables: Designed specifically to handle rotational stress without wearing out. They often combine power, control, and fiber optics into one hybrid assembly to simplify internal layouts.
Without these, you’d be replacing cables constantly—and that’s not cheap.
Grounding & Lightning Protection Cables: Safety First
When you’re the tallest thing for miles, you’re basically a lightning magnet. That’s why grounding and lightning protection is a huge deal.
- Grounding Cables: Usually thick copper wires that safely carry lightning strikes down to grounding rods or meshes buried at the turbine base.
- Surge Protection Wiring: These keep sensitive electronics safe from voltage spikes.
Heating Cables: Battling the Cold
In colder climates, ice can build up on blades or internal components. Some turbines include heating cables to prevent or minimize ice formation.
- Blade De-Icing Systems: Embedded or externally mounted heating elements melt ice as it forms.
- Nacelle Heaters: Keep internal electronics operating within safe temperature ranges.
Real-World Cable Pairings: A Quick Snapshot
| Use Case | Cable Type | Voltage Rating |
| Generator to transformer | Medium Voltage | 20kV XLPE |
| Blade pitch system | Control Cable | 600V shielded |
| Data to SCADA system | Fiber Optic | SM/MM fiber |
| Lightning protection | Grounding Cable | Bare copper |
| Torsion loop | Flexible Hybrid | Varies |
Why All This Matters
Choosing the right cables isn’t just about technical specs; it’s about reliability, safety, and long-term cost. The wrong cable might save you a few bucks upfront but cost you thousands in downtime or repairs down the road.
Plus, every setting is different. Offshore turbines need heavier armor and better corrosion resistance. Cold-climate turbines need heating systems. High-altitude turbines deal with thinner air and different stress loads.
In short: one size absolutely doesn’t fit all.
The Bottom Line
Cables might not be the flashiest part of a wind turbine, but they are absolutely mission-critical. The next time you see a row of spinning blades, remember: beneath all that clean energy glory is a jungle of carefully chosen wires keeping everything running smoothly.
