Automaxx

Automaxx Hybrid Street Light System – Yellow Light

Go Green, Live Green

  • Weather Resistant
  • Adjustable Timer System
  • MPPT + Battery Included
  • Self-Sufficient Street Light
  • Auto Adjust LED Light Brightness
  • Auto + Manual Breaking System

Specifications

Model Number: WS-6CB

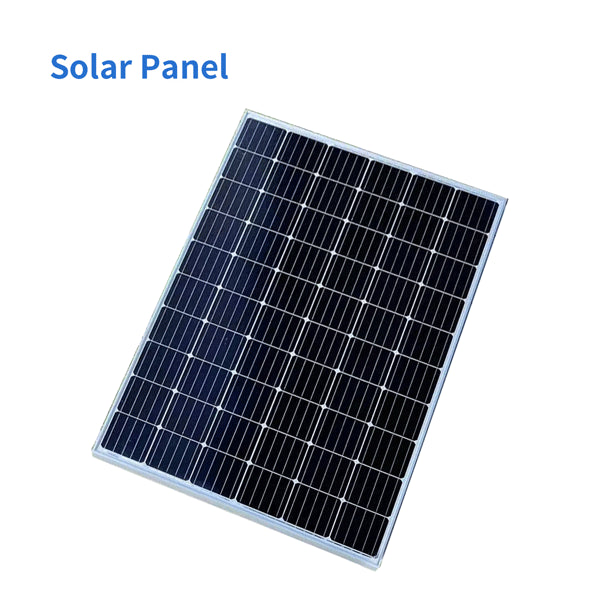

<<SOLAR PANEL>>

Rated Power:195W

Open Circuit Voltage:29.87V

Short Circuit Current:8.48V

Max. Power Voltage:23.9V

Max. Power Current:8.16A

Module Efficiency:14.95%

Solar Cell Efficiency:17.2%

Operating Temperature:-40°C ~ +85°C

Dimensions:1310 x 989 x 45 mm

Weight:15.7kg

<<SOLAR MPPT CHARGE CONTROLLER>>

Rated Power:200W

Rated Input Current:5A

Charging Start Voltage:DC 6V

Input Voltage Range:DC 6V – 50V

Output Voltage:DC 12V

Max. Power Current:16.66A

Max. Power Efficiency:>85%

Battery Low Shutdown:DC 11.5V ± 5%

Battery Floating Charge:DC 13.8V ± 5%

DC Load Current:Max. 16A

DC Load Management:16 Kinds

Operating Temperature:-20°C ~ +40°C

Dimensions:200 x 142 x 50 mm

Weight:1.7kg

<<WIND TURBINE 600W>>

Rated Speed:12.5m/s (41ft/s)

Rated Power:600W

Voltage with MPPT:Can detect 12V or 24V

Rotor Diameter:1.31m (4.2ft)

Cut-In Wind Speed:2m/s (4.5mph)

Survival Wind Speed:50m/s (110mph)

Suggested Battery Capacity:>100 A/Hr

MPPT Charge Controller:External (Included)

Generator:3 phrase AC

Number Of Blades:3

Blade Material:PP + Glass Fiber

Weight:9Kg

<<WIND TURBINE 600W MPPT CHARGE CONTROLLER>>

Output Power:12V/24V Auto-Detect

Input Voltage Range:5 ~ 75 VRMS

Voltage with MPPT:Can detect 12V or 24V

Charging Efficiency:>97% ~ 99%

Battery Protection Voltage:12V – 14.4V (Lead-Acid Batteries)15.8V (Deep-Cycle Batteries)24V – 28.8V (Lead-Acid Batteries)30V (Deep-Cycle Batteries)

Rated Load Current:Max. 35A

Over-speed Braking:≦1400RPM

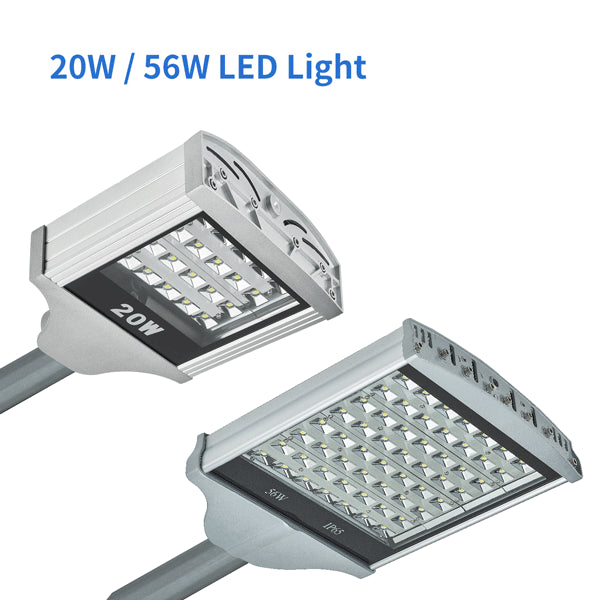

<<LED Street Light>>

Rated Power:55W±5

Operating Voltage:DC 12V

Operating Current:3.75A

Color Temperature:5000K (3000K)

Output Luminous:>5100LM (White)

Color Rendering Index:Ra≧80

Effective Illuminated Area:>20M x 8M

Life Cycle:>30000 hours

Optical Decline Rate:3000 Hrs < 10%

Illuminance as Distance:73LUX (4m high)

Operating Humidity:10 ~ 95%

Operating Temperature:-40°C ~ +50°C

Dimension:440 x 225 x 120 mm

Weight:6.5 kg

<<BATTERY>>

Nominal Voltage:DC 12V

Capacity:75A/HR x 2 (150A/HR)

Life Cycle:>200 Times

DIN Type Battery:5.2 L

Terminal Type:B2

Operating Temperature:-20°C ~ +50°C

Dimension:260 x 168 x 223 mm

Weight:26 kg

Product Includes

1 x Wind Turbine

1 x Solar Panel

1 x LED Light

1 x DC Battery

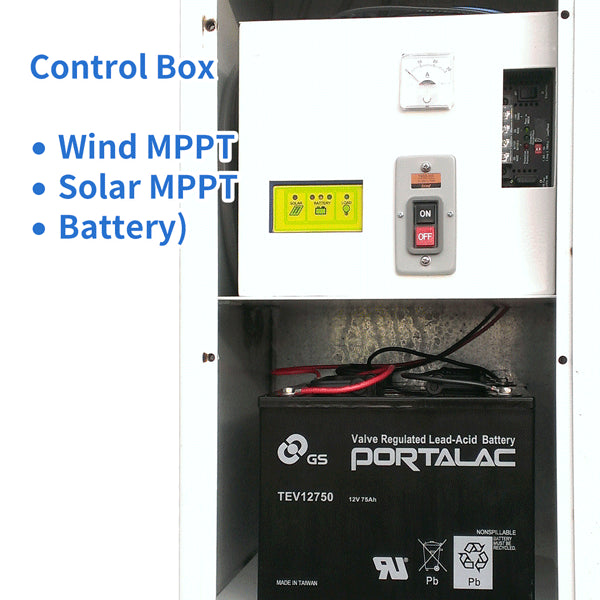

1 x Pole1 x Control Box

1 x Instruction Manual

1 x Accessory Pack

Automaxx

Automaxx Hybrid Street Light System – Yellow Light

From $2,300.00

Go Green, Live Green

Wind Turbine

  • 400W
  • 600W
View product
