Harnessing wind energy offers landowners the opportunity to generate clean electricity, reduce utility costs, and even create long-term revenue. However, determining how many wind turbines your property can support involves more than simply having enough open space. From technical specifications and turbine spacing to zoning laws and wind resource evaluation, there are several essential factors to consider. This guide outlines seven key elements that will help you assess, plan, and optimize a wind turbine installation tailored to your land and goals.
1. Land Size and Turbine Type
The amount of land needed for a wind turbine installation is determined primarily by the size and capacity of the turbine. Small-scale turbines designed for residential or small farm use typically require less land, while utility-scale turbines used in commercial wind farms demand significantly more space for safe and efficient operation.Each turbine must have enough clearance to ensure optimal wind capture. The rotor diameter—a key indicator of turbine size—affects not only how much energy a turbine can produce, but also how far apart turbines must be spaced.
| Turbine Size | Rotor Diameter | Minimum Space per Turbine |
| Small (1–10 kW) | 2–7 meters | 1–3 acres |
| Medium (10–100 kW) | 8–20 meters | 3–20 acres |
| Large (100 kW+) | 20–60 meters | 40–100 acres |
While the turbine's physical base may only take up a few square feet, the surrounding area must remain free of obstructions to allow unimpeded airflow. In many agricultural settings, the land between turbines continues to be used for crops, grazing, or other compatible purposes.
2. Spacing Guidelines
Wind turbines must be spaced strategically to minimize the wake effect. As wind passes through a turbine, it loses energy and becomes turbulent. This turbulence can interfere with downstream turbines, reducing their efficiency.Spacing guidelines are based on the rotor diameter of the turbine:
- Downwind spacing: Typically 8–12 times the rotor diameter
- Crosswind spacing: Typically 4–6 times the rotor diameter
Practical Example:
If a turbine has a rotor diameter of 10 meters:
- Downwind spacing should be 80–120 meters
- Crosswind spacing should be 40–60 meters
In larger wind farms, turbines are often arranged in staggered rows to maintain adequate wind flow across the site. For individual or small-scale installations, prevailing wind direction, terrain, and nearby structures must be considered to optimize placement and airflow.
3. Zoning Regulations and Setbacks
Local zoning ordinances and land-use codes play a significant role in where and how wind turbines can be installed. These rules ensure that turbines do not pose safety, noise, or visual impact issues for nearby residents and infrastructure.
Common zoning restrictions include:
- Setback requirements: Minimum distance from property lines, homes, roads, and utilities
- Height limits: Restrictions based on land use classification or proximity to airports
- Noise regulations: Maximum decibel levels at property boundaries, often between 50–60 dB
- Shadow flicker and aesthetic considerations
Greene County, Missouri Example:
- Setback from residences must be at least 1.1x the turbine height
- Setback from public roads is a minimum of 300 feet
Permitting often requires submitting detailed site plans, turbine specifications, and environmental documentation. In some jurisdictions, public notification and hearings may also be required.
4. Wind Resource Quality
The viability of a wind turbine system hinges on consistent and adequate wind speeds. Areas with average wind speeds below 10 mph may not generate sufficient electricity to justify the investment.Several variables influence local wind conditions:
- Topography: Higher elevations and open plains have stronger, steadier winds
- Obstructions: Buildings, trees, and hills can block or redirect wind flow
- Surface roughness: Affects how wind moves close to the ground
Tools for wind analysis:
- NREL Wind Maps for long-term average wind data
- Global Wind Atlas for worldwide wind resource evaluation
- Anemometers and temporary wind towers for site-specific measurement
Professional wind assessments, ideally conducted over 12 months, provide the most accurate insight into a site’s wind potential and energy yield.
5. Grid Connection and Net Metering
In grid-connected wind energy systems, the turbine supplies electricity to the property and exports any surplus to the local utility grid. This setup requires compatibility with utility infrastructure and compliance with technical standards.
Key components of a grid-tied system:
- Inverter: Converts turbine-generated DC power to grid-compatible AC power
- Disconnect switch: Allows utility workers to isolate the system for maintenance
- Smart meter: Measures both energy consumption and export
Most states support net metering, which credits property owners for excess energy sent back to the grid. Policies vary widely, so it’s important to review local utility rules.In remote areas, off-grid systems with battery storage are more common. Hybrid setups, combining wind and solar with energy storage, provide consistent power and reduce dependence on diesel generators or utility connections.
6. Permitting and Compliance
Wind turbine installations must adhere to a range of local, state, and federal permitting requirements. These are designed to ensure safety, environmental protection, and proper integration with infrastructure.
Common permitting requirements:
- Building permit: Validates structural safety and zoning compliance
- FAA notification: Required for towers exceeding 200 feet or near airports
- Environmental review: Evaluates wildlife impacts, especially for large installations
- Electrical inspection: Ensures code compliance for wiring and grid integration
Permit timelines can range from several weeks to over a year depending on project size and location. It’s advisable to work with a project consultant or permitting specialist to streamline the process.
7. Layout Planning and Wind Turbines Count

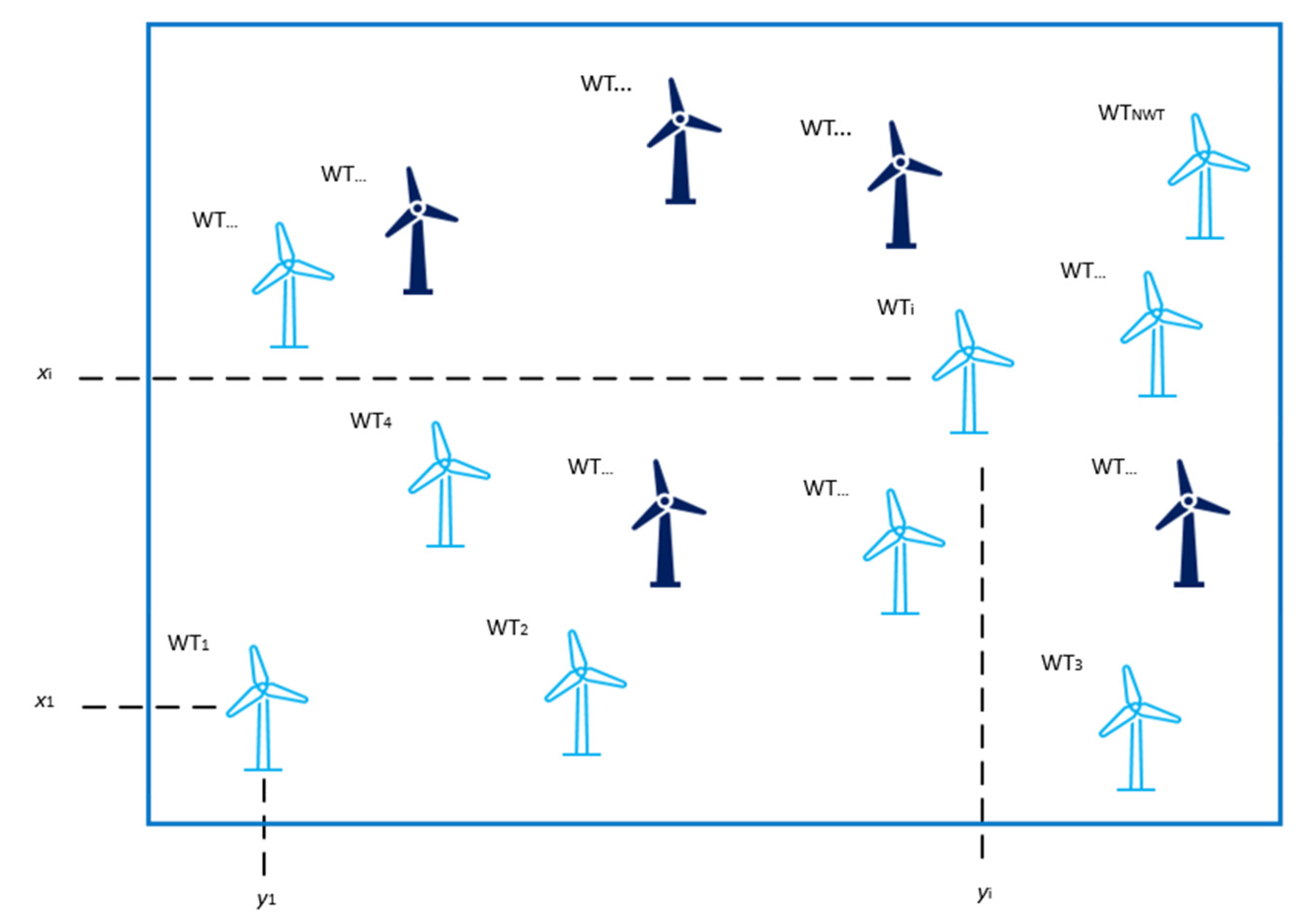

Once site constraints and zoning regulations are clear, it’s possible to estimate the number of turbines a property can support. Layout planning integrates spacing, setbacks, wind direction, and topography.
Case Study Example:
- Property: 60 acres of open farmland
- Turbine type: 10 kW, 7-meter rotor
- Spacing: 70 meters downwind (10D), 35 meters crosswind (5D)
After accounting for setbacks and land geometry, the parcel could accommodate approximately 12–18 turbines. This depends on terrain slope, access roads, and buffer zones.Mapping tools such as AutoCAD, ArcGIS, or Google Earth can be used to visualize turbine layout. Some turbine manufacturers also offer software for simulating wind flow and predicting energy output.Working with a certified wind site assessor or engineer ensures the layout is optimized for performance and compliance.
Frequently Asked Questions (FAQs)
Q: Can I install a turbine in a suburban backyard? Installing a wind turbine in a suburban environment is usually restricted. Residential zoning regulations often limit structure height and impose aesthetic and noise constraints. Some municipalities may allow small vertical-axis wind turbines with appropriate permits, but space, wind quality, and neighborhood compatibility are limiting factors.
Q: How noisy are wind turbines? Modern small turbines produce sound levels between 40 and 60 decibels at close range—comparable to a home appliance or quiet conversation. Sound levels diminish quickly with distance. Noise concerns can be addressed with proper siting and advanced blade designs that minimize aerodynamic noise.
Q: Do wind turbines affect wildlife? While wind turbines can impact bird and bat populations through collisions or habitat disruption, modern environmental assessments help mitigate these risks. Developers often avoid sensitive habitats and implement mitigation strategies such as smart curtailment (pausing operation during high-risk periods).
Q: What happens when there’s no wind? Grid-tied systems automatically draw electricity from the grid during low-wind periods. Off-grid systems rely on battery storage or backup energy sources like solar panels or generators. Proper system design ensures reliable power even during wind lulls.
Q: Can I lease my land to a wind developer? Yes. Many rural landowners lease their land for commercial wind farms. These agreements typically offer annual payments or a percentage of energy revenue over 20–30 years. It's essential to consult legal and financial advisors before signing, as leases include clauses about access, liability, and equipment removal.
Conclusion
Installing wind turbines on private land offers significant benefits—ranging from energy savings and grid independence to long-term income through land leases. However, the number of turbines you can install depends on a range of technical and regulatory factors: land area, turbine specifications, wind speed, zoning laws, environmental impact, and infrastructure readiness.Thorough planning and site evaluation are critical. Consult with wind energy professionals, permitting authorities, and equipment providers to develop a feasible, efficient, and legally compliant installation. With the right approach, wind energy can be a sustainable and profitable investment for landowners.For additional resources, tools, or to explore high-performance turbine kits, visit Automaxx Windmill.
